Innometrics Premium Line — Identity, at a Glance

EzIris Iris Recognition Terminal

EzIris is a 10.1-inch flush-mount terminal that reads the iris — the world's most secure biometric — from up to 80 centimetres away. No touch, no card, no queue. CNC-machined aluminium, Mohs 7 tempered glass, and on-device matching against up to 500,000 iris records. Built for access control, time attendance, and high-security identification.

Request Quote Download Brochure

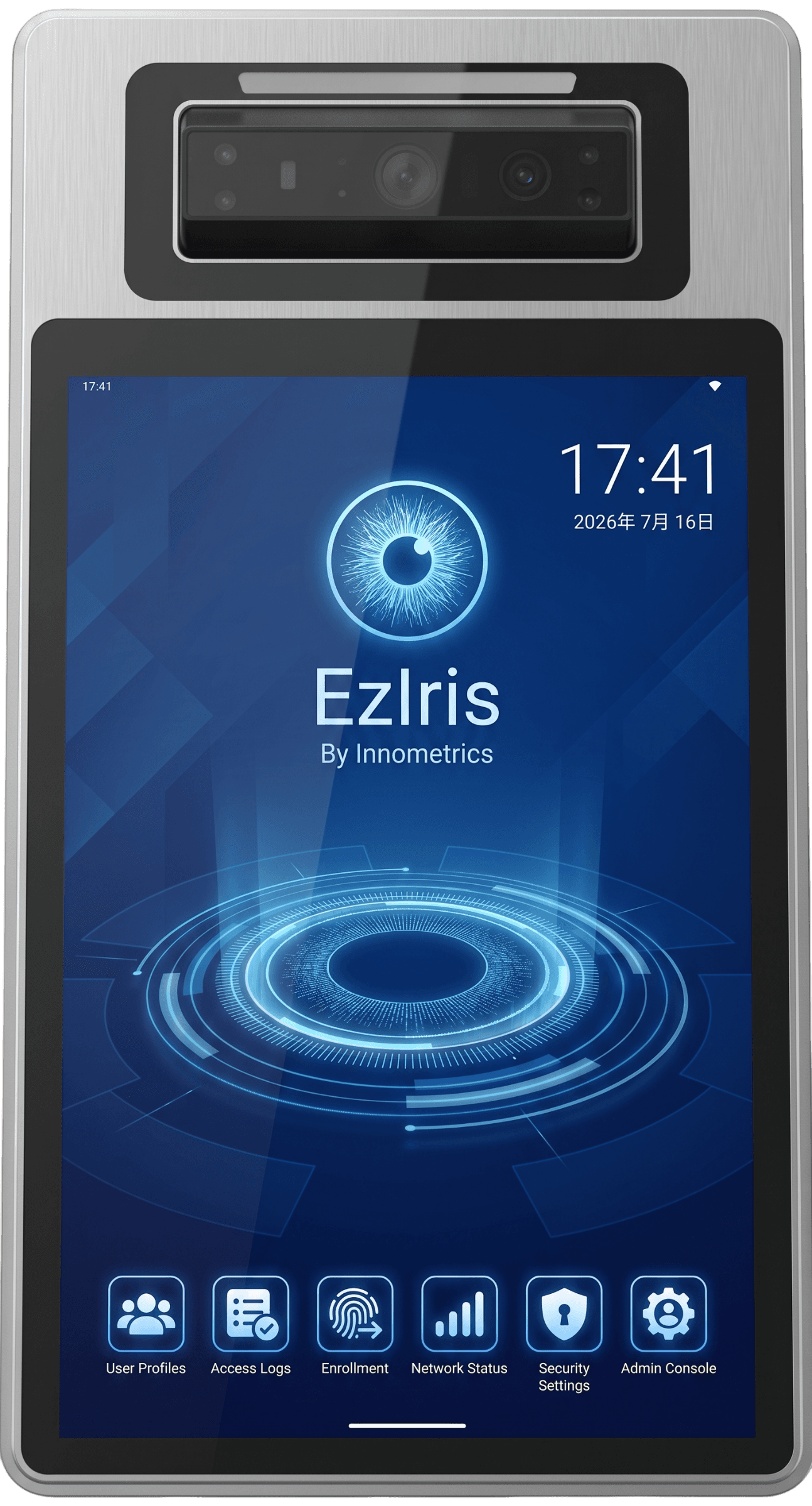

EzIris 10.1 Inch Iris Recognition Terminal

Product film

EzIris — cinematic intro

A 10-second look at the premium terminal — materials, sensors, and the on-device experience.

EzIris · 10.1″

Key Features

Why Choose Our EzIris Iris Recognition Terminal

Contactless Iris Capture

5 MP infrared module with 810 nm active IR captures and matches irises from 40–80 cm, tolerating ±30° of head tilt for natural walk-up use.

On-Device Matching

1:1 and 1:N matching runs on the terminal itself — enroll and identify without sending biometrics off-device. Up to 500,000 iris records on board for 1:1.

Built for the Wall

CNC aluminium under Mohs 7 glass, anodized silver finish, rated −25 °C to +75 °C for unbroken 24/7 duty in demanding environments.

Integrates Without Adapters

Dual gigabit LAN, RS-485, HDMI, USB OTG, Wi‑Fi 6, and optional Bluetooth — talk to the controllers already on site.

Technical Specs

Detailed Specifications

Complete technical specifications for our product line.

Iris Sensor5 MP, 810 nm active infrared

Capture Distance40–80 cm, ±30° pitch

Matching1:1 and 1:N†, enrollment on device

Iris Capacity500,000 records (1:1)*

Status IndicatorRed / green LED

ProcessorNPU-based, 6 TOPS

Display10.1", 800 × 1280, 178° viewing

Brightness500 cd/m², 60,000 h life

Touch10-point G+G capacitive, >50 M touches

Wired NetworkGigabit LAN (RJ45) × 2

WirelessWi‑Fi 6 (802.11 a/b/g/n/ac/ax)

BluetoothOptional

Audio2 × 5 W, 8 Ω speakers

Interfaces2× USB (1 OTG), HDMI, RS-485, TF, DC

Cover GlassMohs 7 tempered, anti-shatter

HousingCNC aluminium, silver anodized

Iris CameraAuto-rotating capture module

Power12 V DC, 4 A

Environment−25 °C to +75 °C, 10–90 % RH

OptionsFace, MIFARE/EM card, QR on request

Product Lineup

The EzIris 10.1"

One flagship terminal — premium iris recognition for access control and attendance.

Flagship

EzIris 10.1"

Premium flush-mount iris recognition terminal with 10.1-inch HD touchscreen. Contactless capture from 40–80 cm, on-device enrollment and matching, CNC aluminium housing with Mohs 7 glass. Multi-modal face, card, and QR modules available on request.

10.1" 800×1280 touch display

5 MP iris @ 810 nm IR

40–80 cm capture range

500,000 iris records (1:1)

Wi‑Fi 6 + dual Gigabit LAN

−25 °C to +75 °C duty

Request Quote
